One Transistor Amplifier/Detector

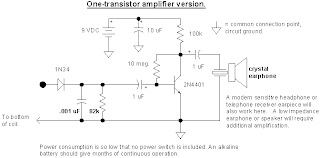

An amplifier may be added to boost the audio level as shown below. The current consumption of this amplifier is quite low and a power switch is not included. Disconnect the battery when the receiver is stored for long periods.



Note: You may use the transistor above as a sensitive detector eliminating the need for the 1N34A diode. Simply leave out the diode, the 0.001 uF, and the 82k resistor. Connect the negative side of the 1 uF directly to the coil. Change the base resistor from 10 meg. to 1 meg. and change the collector resistor from 100k to 10k. Now add a 0.01 uF from the collector to the emitter and the modifications are complete. This detector is quite sensitive and will be overloaded by very long antennas! Use a shorter antenna or a coil tap very near ground if significant distortion is noticed. The circuit draws about 1/2 mA.
